PCI BUS 16 CHANNELS PHOTO ISOLATOR INPUT/OUTPUT ADAPTER








INTRODUCTION

The PCI 16 channels photo isolator input/output adapter is a 32 bits PCI bus board with Plug and Play (PnP) features, it is a programmable I/O interface card for PC/486, Pentium, or compatibles. The PnP features let hardware configuration for IRQ and I/O address is detected by BIOS automatically, you don't need set switch and jumper.

The PCI 16 channels photo isolator input/output adapter provides 16 photo couple digital input/output channels, which allow the input/output signals to be completely floated and prevent the ground loop.

The features of PCI 16 channels photo isolator input/output adapter are:
32 bits PCI bus with Plug and Play (PnP) features.
Support 16 photo couple input/output channels.
Allow the photo input/output signals to be completely floated and prevent the ground loops.
16 LED correspond to 16 output ports activation status.
By using 4N33 photo couple chips.
1500V isolation voltage.
Maximum load voltage is 30V.

Maximum 80mA input current.
Voltage range from 0V to 30V, where 0 to 3V is OFF and 5V to 30V is ON.
Operating temperature range from 0 to 33C.
Relative humidity rage from 0 to 90%.


PACKAGE CONTENTS:

SMARTLAB PCI bus 16 channels photo couple input/output adapter.
User's manual.
Warranty form.

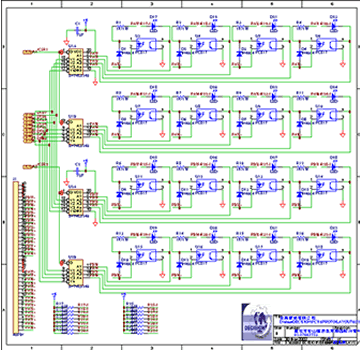

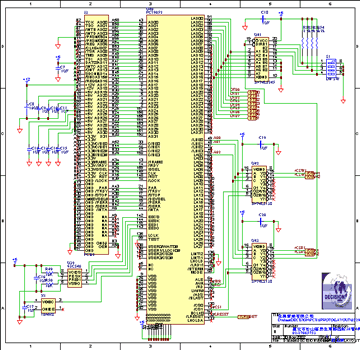

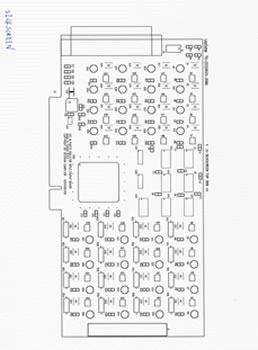

Technical data - Isolated input Output and Relay Output
Isolated input: The digital signal input with isolated protection.
Photo Isolator :
TLP620
BRD-1A05D

DOWNLOAD 4N33 Data sheet
